The name 'X-tract' is inspired by the word 'extract,' meaning 'to draw out the essence.' Its slender design allows it to easily access narrow, hidden spaces, capturing microscopic details invisible to the naked eye and transforming them into stunning imagery.
Combining a T8 large aperture, wide-angle zoom macro capabilities, and a design inspired by starship exploration, it redefines macro cinematography. The X-tract lens becomes a tool for exploration and discovery, extracting unique visual creativity from unknown dimensions and perspectives.
The X-tract 18-28mm T8 wide-angle probe zoom series redefines the possibilities of macro cinematography. Featuring a combination of 0°,90° and 360º lenses, it offers boundless creative flexibility. The X-tract probe zoom covers essential focal lengths for commercial filming, enabling effortless adjustments even in confined spaces while delivering enhanced spatial depth and dimensional detail that redefines probe lens capabilities. This flexibility empowers filmmakers with exceptional adaptability and creative expression.
X-tract 18-28mm T8 0° lens features 7 high-refractive-index (HRI) lenses and 6 extra-low-dispersion (ED) lenses, striking an optimal balance between size and weight while minimizing chromatic aberrations, distortions, and optical flaws common in probe lenses. Its innovative differential distribution of HRI lens delivers prime-level image quality and accurate color temperature, effectively reducing the yellowish tint commonly seen in other probe lenses. Distortion is kept within ±2% across the entire zoom range, with near-zero distortion and focus breathing at 24mm, ensuring precise rendering of intricate micro-details.
The combination of prism structure and 360° rotating ring, offering an additional dimension for creative adjustments and providing a more immersive macro experience. The entire series features a smooth 300° focus throw, tested for high-frequency durability and micron-level assembly precision, enabling precise focus shifts and more flexible depth of field control. The X-tract lenses feature a par-focal design, locking the focus during zooming. Whether capturing subtle movements or quickly changing focal lengths, the focus remains sharp, delivering the classic Hitchcock dolly zoom effect even in macro shooting.
Note: Images captured with the 90° lens require Mirror Flip.
The X-tract series features native breath control, reducing breathing effects to just 0.5% at the 24mm (compared to 39.2% in other 24mm probe primes). The focus breathing becomes virtually imperceptible, minimizing the need for post-production adjustments. This ensures seamless visual continuity and stability during focus shifts, delivering immersive and spectacular cinematic visuals. The X-tract 0° probe zoom maintains a relative illumination of 70.7%, while the 90° probe zoom offers 68.6% (compared to 54.9% in other 24mm probe primes), ensuring consistent brightness and delivering professional-grade visual performance.
Breathing Effect
RI of 0° Lens
RI of 90° Lens
RI of 360° Lens
The X-tract 360° probe lens Unlock three shooting modes for creative flexibility: Front Mode (0°): 30cm probe shaft moves in a 55cm arc for smooth vertical shots in tight spaces. Oblique Mode (0-180°): Dual rotation rings enable Dutch angles and horizon adjustments without quality loss.
Rear Mode (180°): Foldable design with 360° rotation for dramatic "barrel roll" effects in confined areas.
With a maximum magnification ratio of 2.1:1, the X-tract reveals the intricate textures of everyday objects and creates stunning, highly detailed visuals. When capturing tiny objects like insect wings, water droplets, sand grains, and miniature items, it brings out microscopic structures that are often invisible to the naked eye. The minimum focusing distance is reduced from the traditional 56.3cm (1'11") of probe lenses to 47.3cm (1'6"), with a minimum working distance of just 6mm (0.2"), allowing the lens to almost touch the subject for finer macro details.
Magnification
Working Distance
Focusing Distance
The specially designed inter-lens mount system delivers exceptional flexibility for detachable kits, enabling seamless transitions from pre-production to on-location shooting. It accommodates diverse team requirements while providing expanded framing options.A modular, detachable version is also available, it offers greater flexibility and reliable support for creative workflows.
*Note: The detachable model cannot be upgraded to a complete unit. The fixed model cannot be disassembled or interchanged.
Constructed from aerospace-grade aluminum alloy, the lens is lightweight yet robust. A 25μm anodized coating enhances the body’s hardness, improving abrasion resistance and corrosion protection. Tested under extreme temperatures from -30°C to 70°C, it ensures stability and durability in challenging shooting environments. With IP57-rated dust and water resistance, the lens body is waterproof to over 28 cm. The front lens element features a hydrophobic anti-fog coating, reducing water and fog accumulation for consistently clear imagery.
Anodized Coating
Testing in harsh environments
Waterproof Depth
Protection Rating
Weighing only 1.09–1.14kg,The 0° measures 41.5cm in the length with a 29.6mm front diameter, the 90º measures 42.1cm in thelength, and the 360° periscope model features a 16cm crossarm and 30cm lens arm. Periscope models share a 37.7×30.58mm square front filter.Compared to bulky macro setups, this slim tube design offers superior flexibility and adaptability. The rear-heavy design shifts the lens' balance closer to the camera body, making it easier to maintain stability whether handheld or with stabilizer use, reducing shake and enabling precise focus and zoom adjustments. When used with sliders or robotic arms for large-range movements, it offers superior control precision, minimizing post-production adjustments.
Weight
With a 28cm water immersion depth, dual-sided hydrophobic coated UV filter, and O-shape clamp, the lens ensures stability and versatility during challenging shoots. The X-tract features a 360° rotating ring, ensuring seamless compatibility with professional cinema equipment and accessories. Optional follow-focus accessories effectively manage rotational focus adjustments. The rotating ring allows for easy adjustment of the lens angle, enabling quick correction of the frame's horizontal alignment to ensure precise composition.

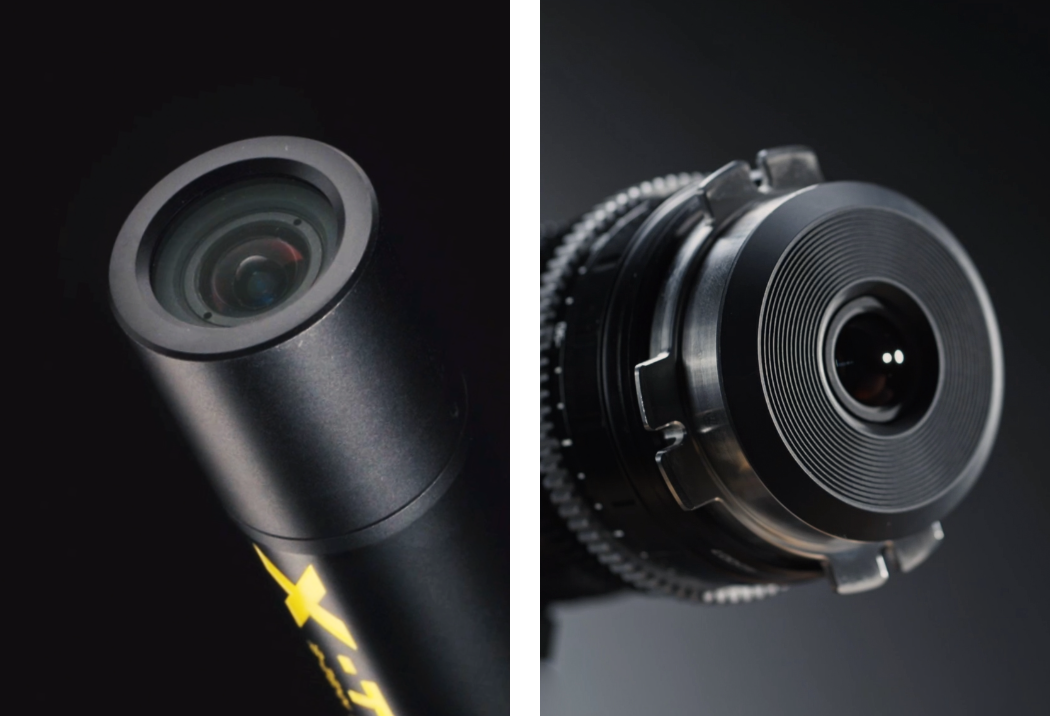

Clear markings for magnification ratio, waterproof lines, and rotation scales on the lens body further improve usability, offering filmmakers a seamless and intuitive shooting experience. The native PL mount features rear elements that protrude just 1.37 cm from the mounting flange. This short rear protrusion is compatible with DZOFILM Octopus and most PL-E/RF/LPL adapters and Speedboosters.
The DZOFilm X-Tract's wide T8 aperture is a game-changer for tabletop and product work, offering incredible depth of field control and capturing stunning details. What sets the Probe Zoom X-Tract apart is its ability to combine macro precision with the creative flexibility of a zoom, delivering stunning image quality with a beautifully creamy bokeh, especially at 28mm. The DZOFILM X-Tract Zoom Probe Lens sets a new benchmark in the market.
Focal Length | 18-28mm | ||
Lens Type | 0° Direct | 90º Periscope | 360º Periscope |
Mount | PL | ||
Aperture | T8-T45 | ||
Image Circle | φ43.2mm | ||
Construction of Optics | 25 Elements in 18 Groups | 26 Elements in 19 Groups | 27 Elements in 20 Groups |
Flange Distance | 52mm | ||
Close Focus (from sensor plane) |
0.47m/1ft7in | ||
Close Focus (from lens front) |
6mm | ||
Zoom Ratio | 1.55x | ||
Magnification factor(28mm) | 2.1X | ||
Iris Control | Manual (72°) | ||
Focus Control | Manual (300°) | ||
Zoom Control | Manual (100°) | ||
Front Dia. | ø29.6mm | 37.7*30.58mm | |
Length | 415mm | 421mm | (installed on camera) Horizontal Length:161mm) Vertical Length:302mm |
Iris Blade | 10pcs | ||
Gear Pitch | 0.8 Mod | ||
Material | Aluminum Alloy | ||
Weight (Product) | ≈1090g | ≈1132g | ≈1144g |
