Quick Set-up
Connects DJI Ronin
RS3 Pro without calibration.

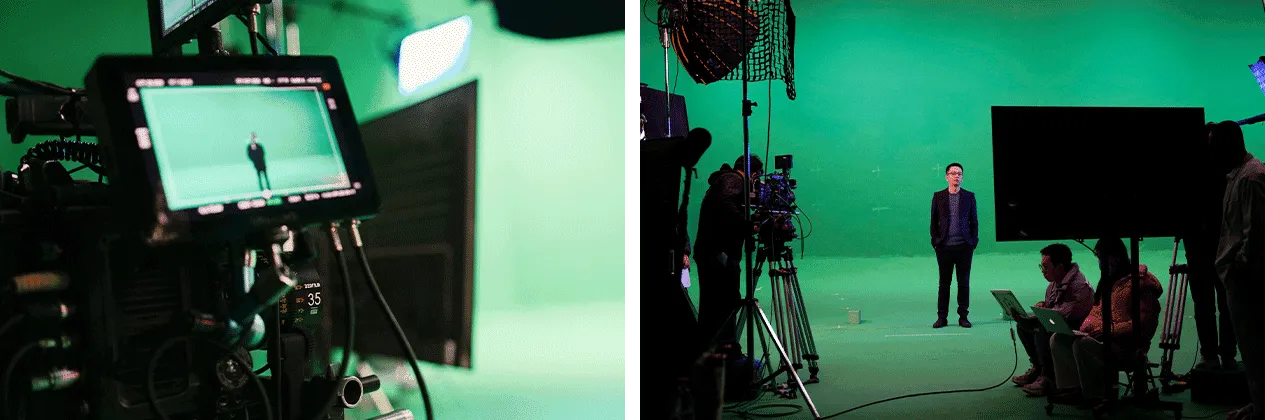

Can be applied in post-production and virtual production.
[ Specification ]
Focal Length
35 mm
50 mm
75 mm
Colour
Black
Mount
PL/ EF
Aperture
T2.1-T22
Image Circle
∮46.5mm (VV/FF)
Optical Construction
11 Elements in 9 Groups
9 Elements in 7 Groups
Flange Distance
52mm (PL)/44mm (EF)
Close Focus
(from sensor plane)
0.3m/1ft
0.46m/1.6ft
0.6m/2ft
Iris Control
Manual
(rotation angle 63°)
Manual
(rotation angle 58°)
Manual
(rotation angle 68°)
Focus Control
Manual (rotation angle 270°)
Front Dia.
φ95mm
Length
97mm
Iris Blade
16
Filter Size
M86
Gear Pitch
0.8 Mod
Material
Aluminum Alloy

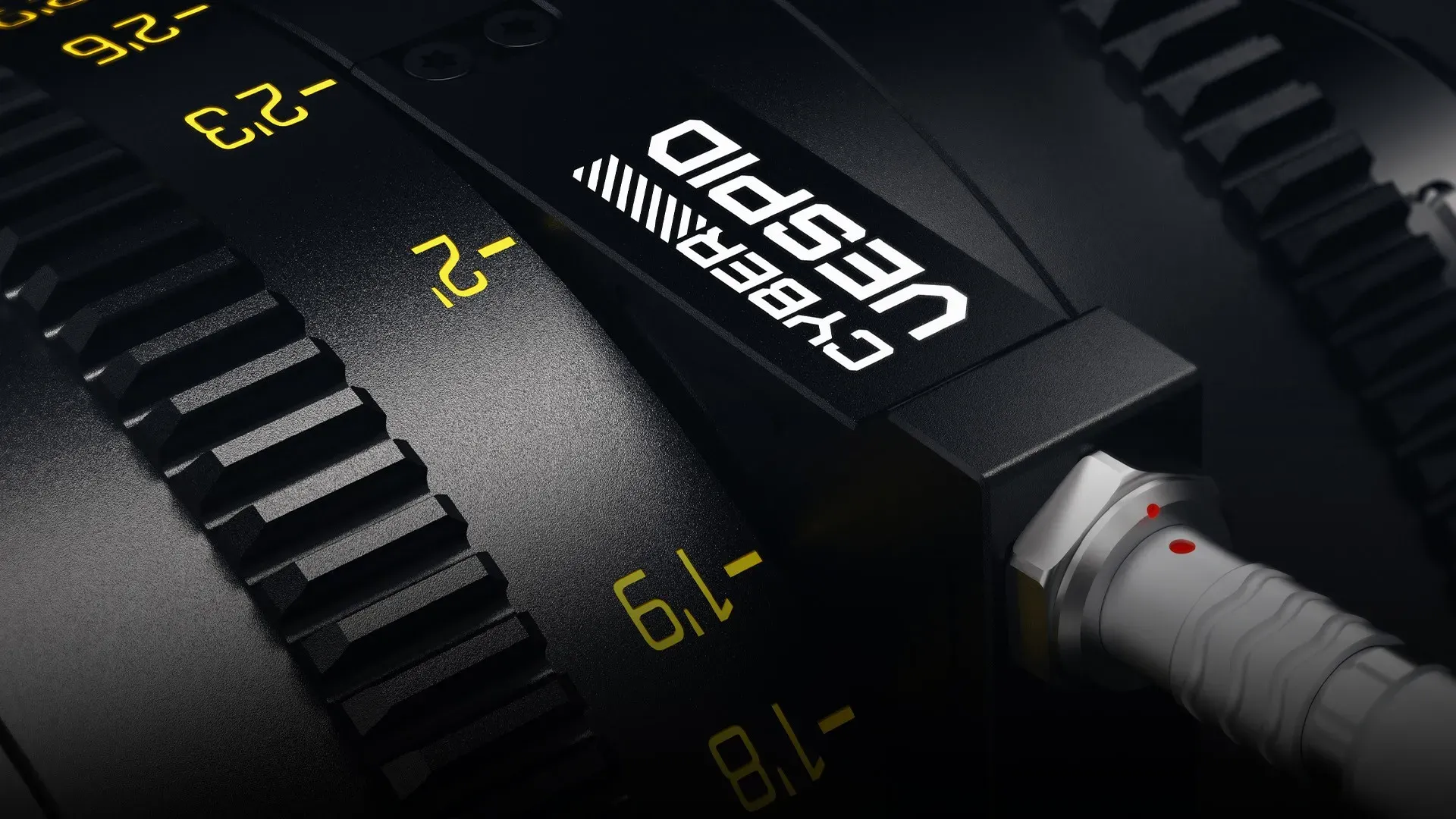

interface TYPE
LEMO (4 PIN) - TYPE C IP 50
Weight
≈1150g
≈1000g
≈1150g
