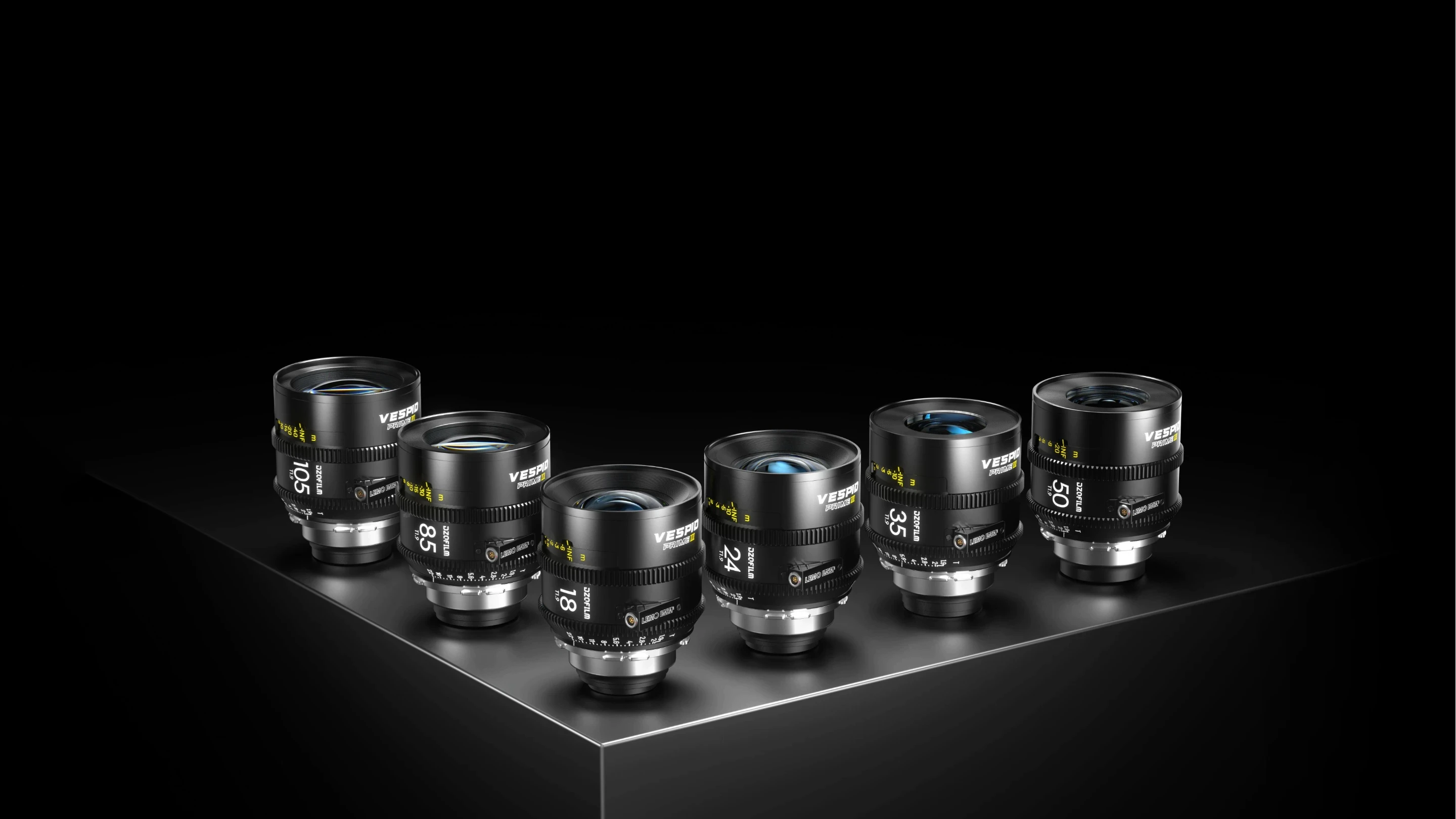

VESPID PRIME 2
新蜂疾影，万物互联
何为玄蜂二代？
灵感取自敏捷高效的蜂类，以轻盈之形，蕴锋锐之力。
如其名般迅捷有力，玄蜂2代系列承袭1代的紧凑高效，在光学与操控上全面突围。Vespid 2以更灵巧的结构、更精准智能的操控，为现代电影创作注入高效、自由的影像表达力。
T1.9
大光圈
DPG ASPH
非球面镜片
浮动对焦，画质更佳
延续前代理念，重塑成更紧凑的设计，全系列搭载浮动镜组，精准修正无限远至最近对焦时的像差波动，1:5.5-8的最大放大倍率显著提升近摄表现，可满足广告/剧情片/纪录片日益增长的近距需求。不管是单兵作战、现场监看、后期预览还是虚拟制片，天生沉浸式电影感。

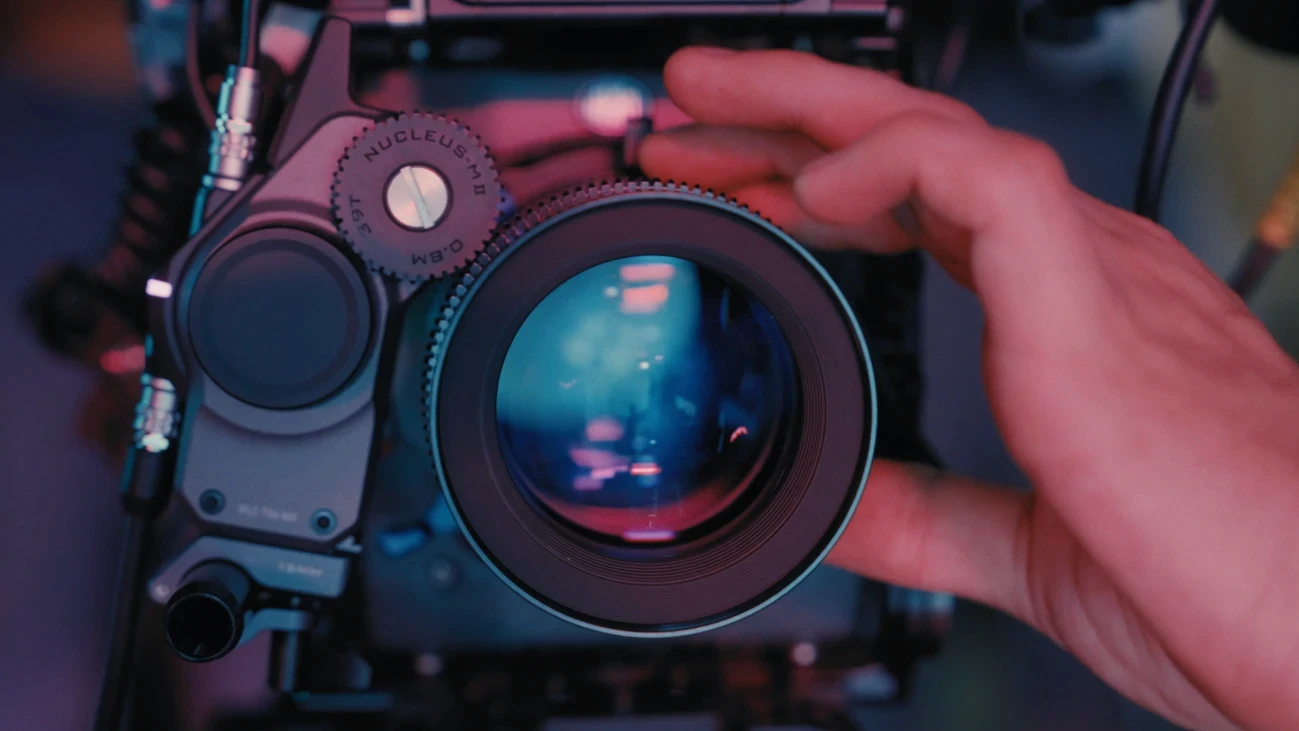

微不可察的呼吸
精密的光学结构有效抑制呼吸效应，使焦点转换自然顺滑，极大增强画面沉浸感与叙事流畅度。
高效协作，神奇小帮手
Cooke /i 即时通信
Vespid 2 在极致紧凑的机身内嵌入 Cooke /i 协议，兼容 ARRI、RED、Blackmagic、Sony、Canon 等主流电影机系统，实现焦距、光圈、对焦距离等元数据实时同步。

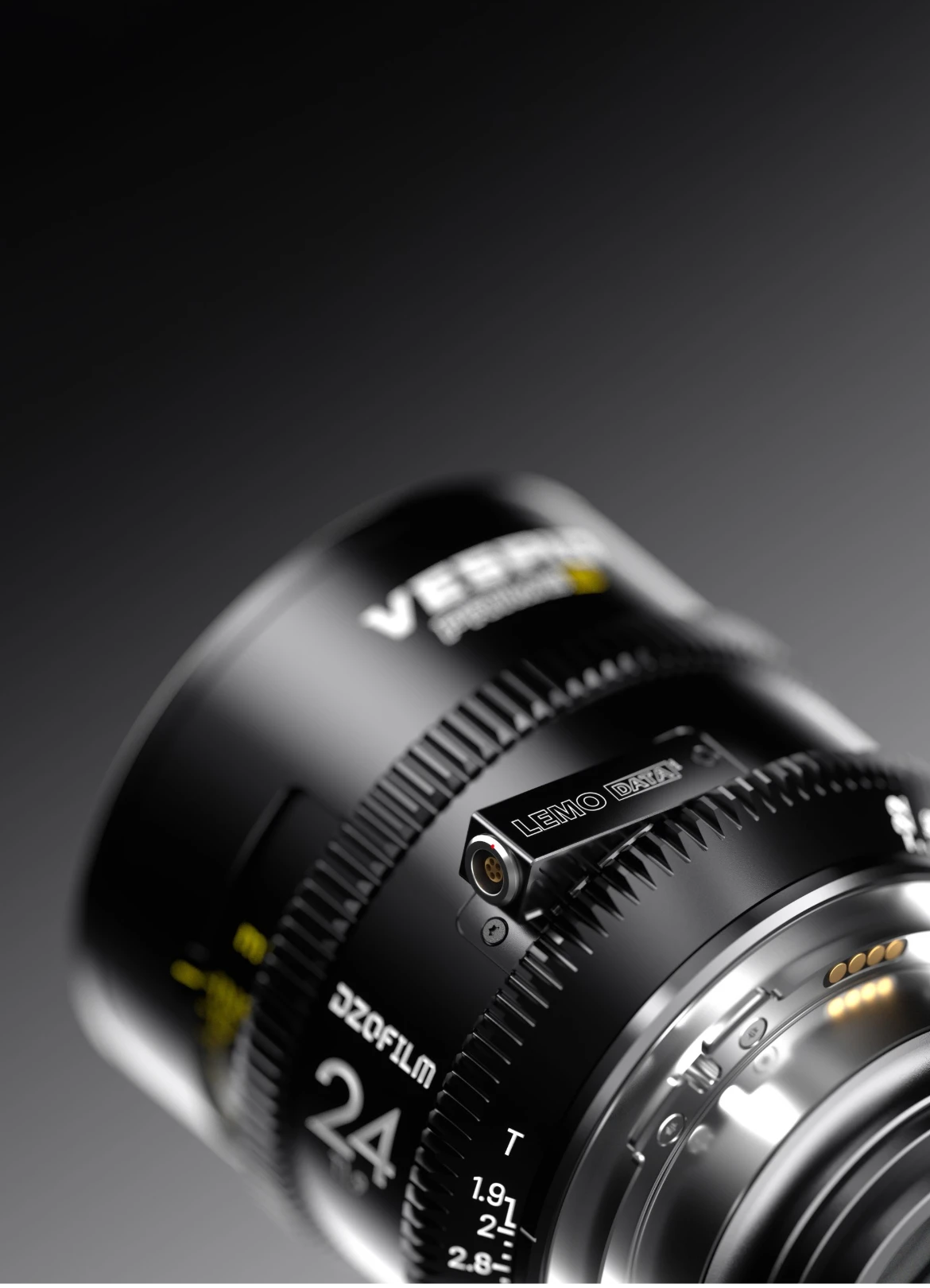

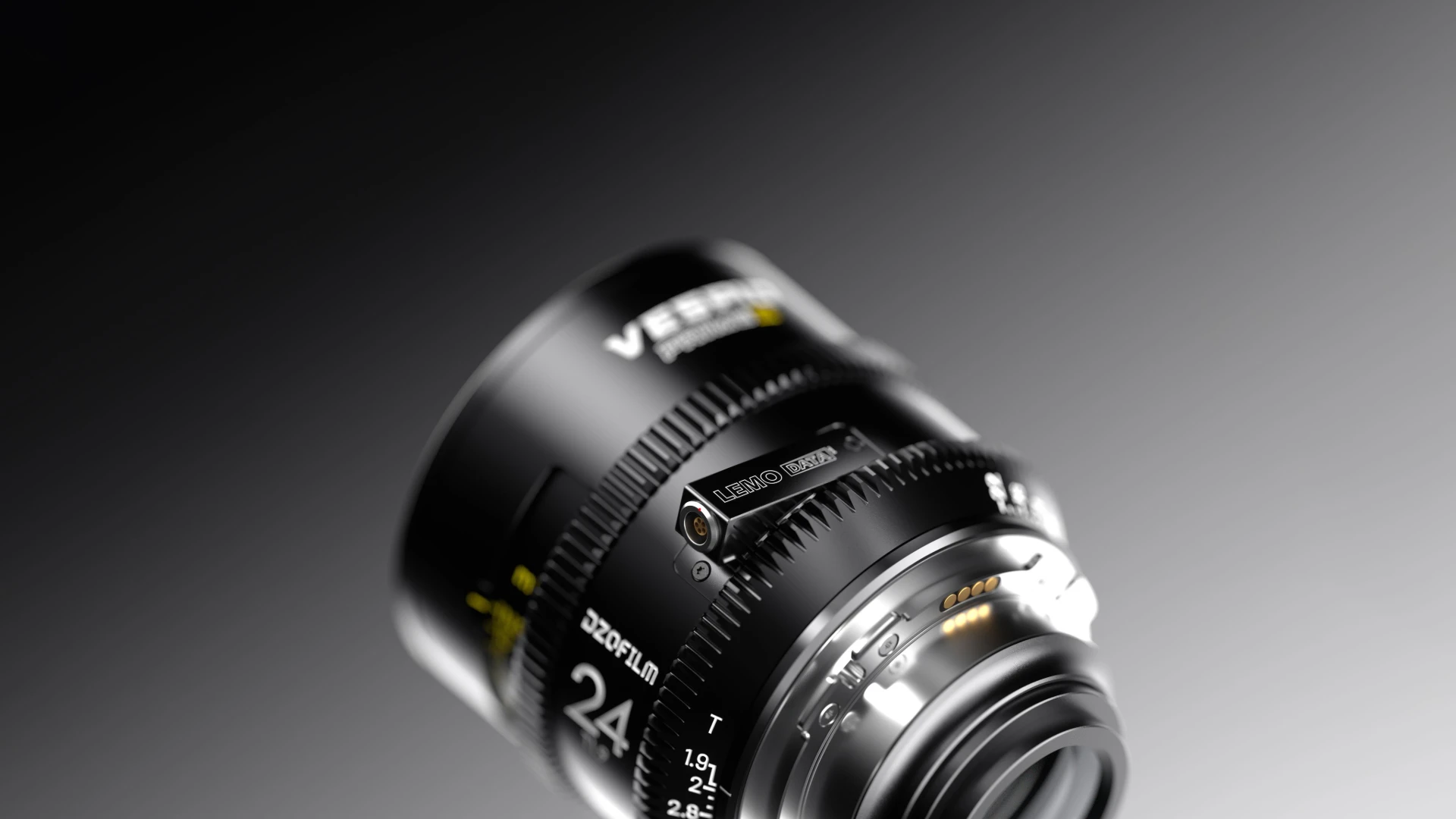

配备 4-pin Lemo 接口，未来支持无线跟焦系统及各类专业电影配件，在电影、电视剧、TVC 甚至短剧中都能快速扩展对应设备。节省时间与成本，为影视创作提供蜂群般高效、流畅的协作体验。
[ 产品参数 ]

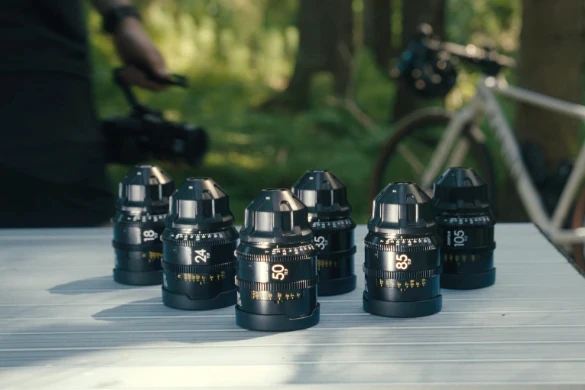

焦距
18mm
24 mm
35 mm
50 mm
85 mm
105 mm
颜色
黑色
卡口
PL
光圈
T1.9-T22
最大像面
φ46.5mm (VV/FF)
最大放大倍率
1:7.6
1:8
1:5.5
1:8
1:7.5
1:7.6
镜片组
15片12组
14片13组
13片9组
12片9组
11片8组
12片8组
法兰距
52mm (PL)
最近对焦距离
(从传感器平面)
0.25m /0.8ft
0.3m/1ft
0.5m/1.6ft
0.74m / 2ft5in
0.9m/3ft
光圈控制
手动 (68°)
手动 (66°)
手动 (65°)
对焦控制
手动 (300°)

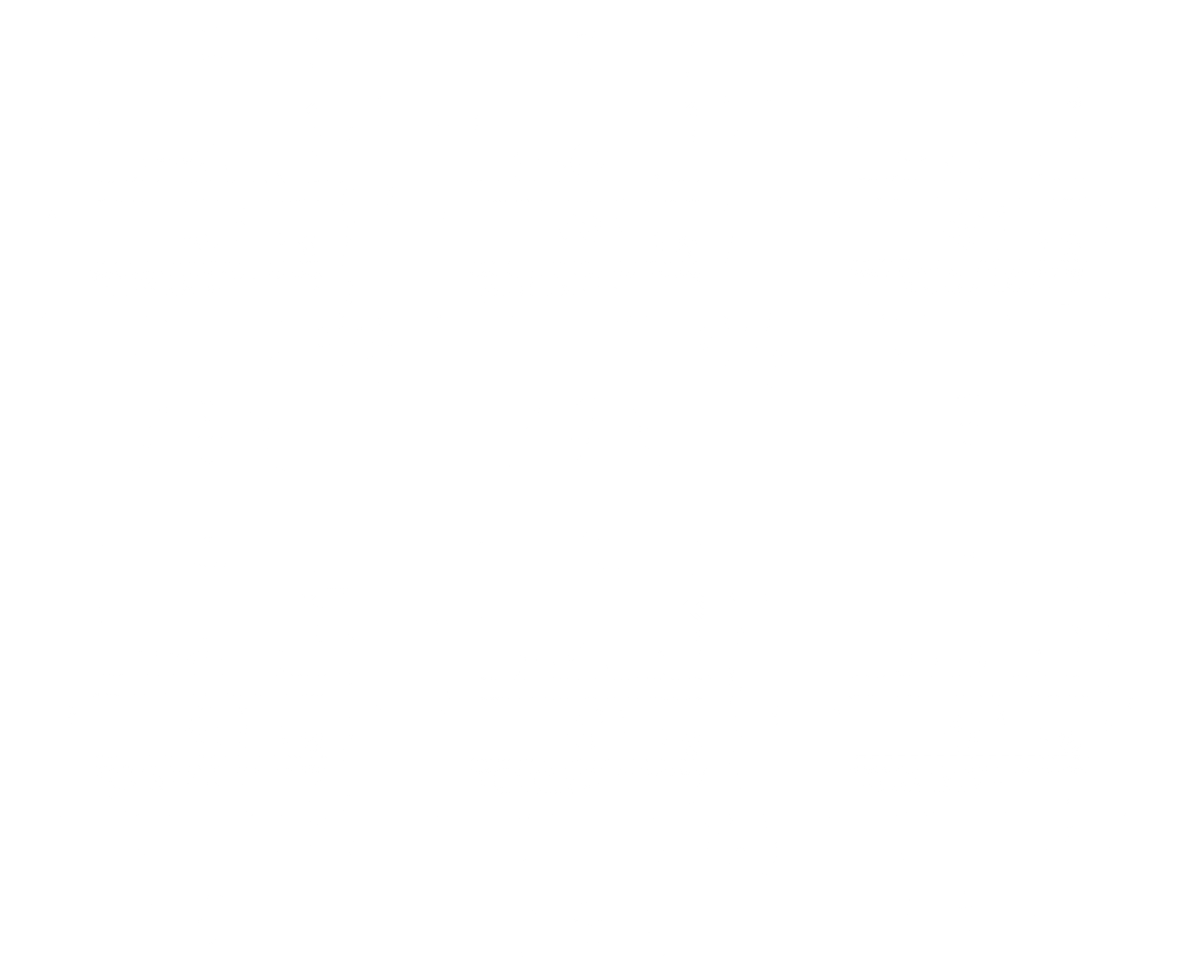

前端直径
φ80mm/3.15"
长度
(从镜面前端面至法兰面)
80mm/3.15” (PL)
叶片数量
10
滤镜尺寸
M77
齿轮齿距
模数0.8

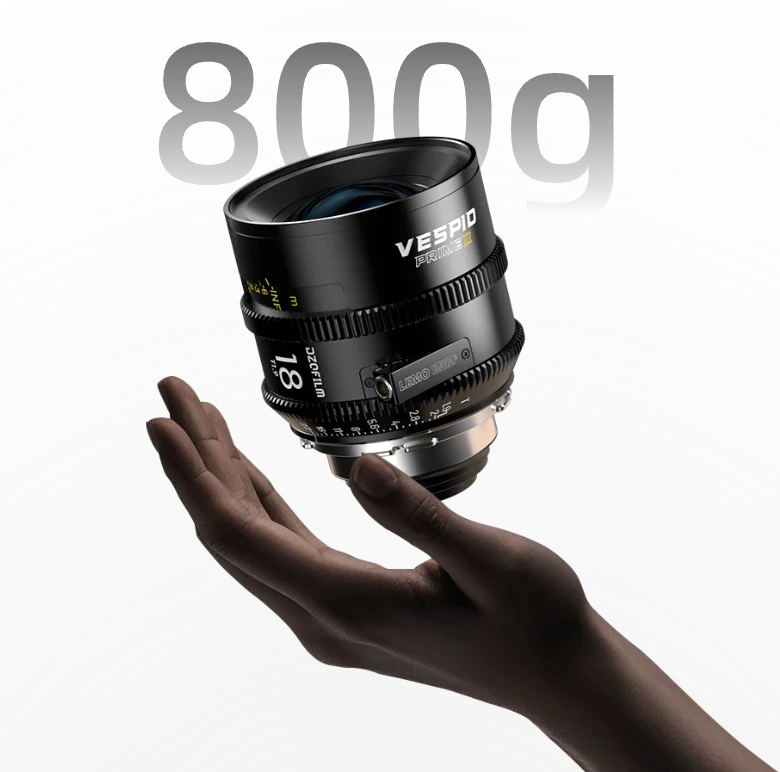

重量 (产品)
≈766g
≈766g
≈800g
≈836g
≈865g
≈833g
